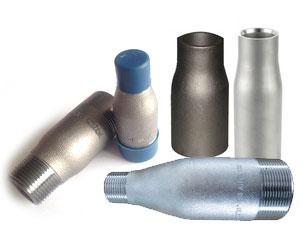

Swage Nipples / Pipe Swage

Swage nipples, concentric swage, eccentric swage, npt/bspt threaded swage nipples manufacturer & suppliers mss-sp-95 standard, ASME b16.11, BS 3799, ASTM a105, a350-lf2, a106, a312, a234, a403, a182 (f304/304l, f316/316l) high pressure stainless steel swage nipples, carbon steel & alloy steel swage nipples manufacturer in India

Manufacturers, dealer, distributor, stockist & suppliers of Swage Nipples/Swage – MSS-SP-95

Swage Nipples/Swage – MSS-SP-95 manufacturer

Type of Pipe Nipples:-

• Hexagon Reducing Nipples
• Hexagon Nipples
• One End Threaded Nipple
• Both End Threaded Nipple
• Concentric Swaged Nipple
• Eccentric Swaged Nipple
• Dimensions, Wall Thickness and Weights of ANSI/ ASME Fittings to ASTM A403 / A815 ASME B16.9
• Dimensions, Wall Thickness and Weights of Fittings to ASME B16.9, ASME B16.28 and MSS SP75
• Factory-Made Wrought ASME/ANSI B16.9 A105 /A182 Pipe Fittings
• Swage Nipples/Swage – MSS-SP-95 Price in India » Please visit our Shop to buy Forged Fittings Online, price available material/ size wise in our shop

Swage Nipples/Swage – MSS-SP-95 manufacturing in Our Work Shop

Hathway / Dynamic is an approved manufacturer of Swage Nipples/Swage – MSS-SP-95 to requirements of BVIS, IBR, BARC, DNV, BHEL & we are ISO 9001:2008, 14001:2004, OHSAS 18001:2007 certified company.

Hathway / Dynamic is manufacturer of Swage Nipples, concentric and eccentric, are available in (T) current API threads, (B) beveled, (P) plain end (Square cut/socket weld), (G) ES groove or Victaulic (Std. Grv.) groove connections, or in any combination of such end finishes. Swage Nipples are manufactured accordance with MSS-SP-95 (Design Specification), ASME BS 3799, ASTM A105, A350-LF2, A106, A312, A234, A403, ASTM A182 (F304, F304L, F316, F316L). Swages or Swage Nipples are a type of pipe connection fitting used to go from one size tubing or casing to another.

Hathway / Dynamic specializes in manufacturing superior grade of steel like Carbon Steel, Alloy Steel, Stainless Steel 201/202, 304/304L, 310S, 316/316L, 317L, 321/321H, 347/347H, 904L, A234 WPB, A420 WPL6, A234 WP11/WP5, Inconel, Monel, Hastelloy, cupro nickel, nickel alloys, Duplex, A403 WP304L/316L – as per ASME B16.9, ASME B16.28. These Forged fittings have special quality finishing and duress for long life, high pressure and zero defects.

Hot selling grades:

Some of the common grade swage nipples include A234-WPB, A403-WP316, A403-WP304, and A420-WPL6 in size range of 1/4″ through to 8″ for concentric swage nipples and 1/4″ to 4″ for eccentric swage nipples.

Swage Nipples / Line Pipe Swages Benifits:

• Victaulic Grooves (Gruvlock) are distinguished by having Std. Grv. in the product description on all documentation.
• Unless otherwise specified concentric Swage Nipples will be supplied.
• Swage Nipples can be supplied with different schedule wall thickness at each end.
• Manufactured from A106 Grade B seamless pipe or cold drawn bar which is heat treated in accordance with ASTM A234-04 WPB.
• Choice of raw material dependent upon size and reduction.

Do you need your Outlet/Olet Pipe Fittings shipped to you internationally? Not only do we ship all of our fittings & flanges globally, we will consolidate the order for you and ship it to the closest port near you. We have gained several Orders of Welding Outlets / Weldolet® from countries like US, Canada, Chile, Brazil, UK, Italy, Venezuela, Belgium, France, Portugal, South Africa, Nigeria, Mexico, Chine, China, United Arab Emirates (UAE), Peru, Bahrain, Saudi Arabia, Qatar, Kuwait, Jordan, Malaysia, Thailand (Bangkok), Singapore, Indonesia, Sudan, Kazakhstan, Australia, Israel, Kenya, Russia, Tunisia, Vietnam, Colombia, Iran, Sri Lanka, etc.

Pipe fitting surplus stock at Dynamic Forge & Fittings

• Pipe Fittings
• Butt Weld Fittings
• Forged Fittings
• Socket Weld Fittings
• Threaded Fittings
• Flange

Swage Nipples/Swage – MSS-SP-95, stainless steel Pipe Nipples, carbon steel Pipe Nipples and alloy steel Pipe Nipples

Swage Nipples/Swage – MSS-SP-95 Production Range

Size: 1/8” to 8”, DN8 to DN200

Type: Concentric Swage Nipples, Eccentric Swage Nipples

Dimensions: MSS SP-95-2006, BS 3799

Connection Ends:

BBE = bevel both ends TBE = thread both ends
PBE = plain both ends GBE = grooved both ends
TXG = thread by groove TXB = thread by bevel
PXG = plain by groove BXT = bevel by thread
TLE: Thread large end PLE: Plain large end
BLE: Bevel large end PSE: Plain small end
BSE: Bevel small end TSE: Thread small end

Raw Materials: A106 Gr. B Seamless Pipes, A105/A105N Bars, A182 304/304L Bars, A182 316/316L Bars, A312 304/304L Seamless Pipes, Duplex Seamless Pipes, A312 316/316L Seamless Pipes, A350-LF2, Alloy Steel Seamless Pipes/Bars

Thickness: Standard, Extra Heavy, Schedule 160, or Double Extra Heavy

Ends: Beveled, Square Cut (for socket-weld), NPT/BSPT/BSP Threaded Swages, Customer Specification

Stainless Steel Swage Nipples/Swage – MSS-SP-95 :

202, 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L, 2205 Duplex

Carbon Steel Swage Nipples/Swage – MSS-SP-95 :

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
NPT Threads conform to ASME B1.20.1
ASTM/ASME A105/SA105 The dimensions for forged carbon steel fittings conform to ASME B16.11

Alloy Steel Swage Nipples/Swage – MSS-SP-95 :

ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
A105/A105N Forged Fittings, A182 Forged Fittings

Nickel Alloy Swage Nipples/Swage – MSS-SP-95 :

ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Duplex & Super Duplex Swage Nipples/Swage – MSS-SP-95 :

ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462

Copper Nickel Swage Nipples/Swage – MSS-SP-95 :

CuNi10Fe1Mn, CuNi30Mn1Fe, Cupro nickel

Swage Nipples/Swage – MSS-SP-95 Test Certificates:

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report as per client specification.

Hathway / Dynamic offer its Products with Third Party Inspection also. The Inspection Agency can be nominated by clients or Dynamic Forge & Fittings can be arrange the TPI by World reputed Agencies like Bureau Veritas, DNV, LLOYDS, ICB and many other. Our products are manufactured as per customer specifications and in accordance with international standards including American Standard (ASTM/ANSI), the British Standard (BS), and the DIN/European standard. NPT threads on Swage Nipples conform to ANSI/ASME B1.20.1. Swage Nipples/Swage – MSS-SP-95 are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. All our fittings are manufactured with tested raw materials and are supplied with NABL approved lab test reports. On demand, we can also provide, Hydro Testing Reports, Non Destructive Test Reports, or Destructive Test Reports.

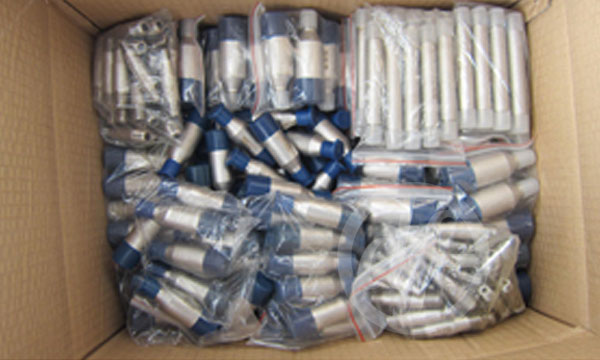

Packaging & shipping:

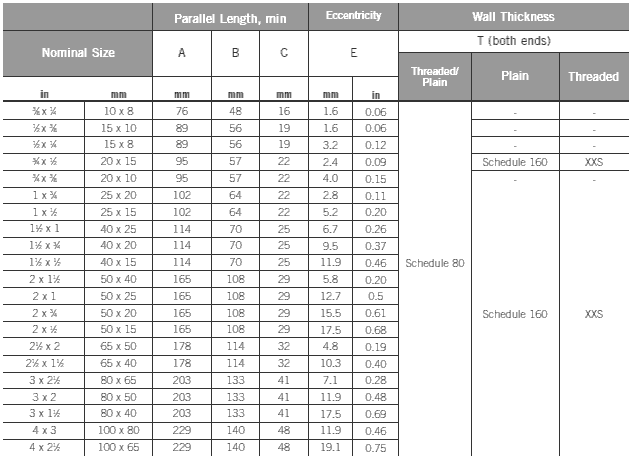

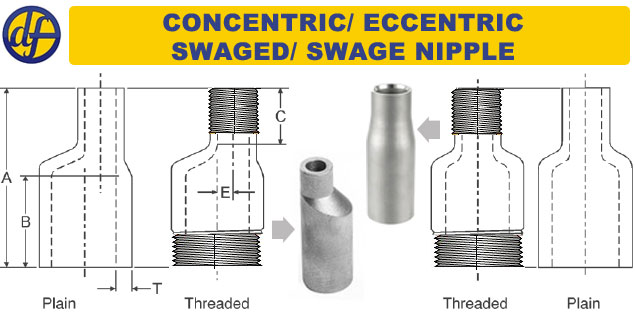

CONCENTRIC SWAGED NIPPLES / ECCENTRIC SWAGED NIPPLES DIMENSIONS – BS 3799

Dimensions of swage nipples (BS 3799:1974)

Notes

Swaged Nipples can also be supplied to MSS or customers’ specifications

An approved manufacturer to requirements of BHEL, DNV, Concentri Swage, Eccentric Swage, NPT Threaded Swage Nipples, BSPT Threaded Swage Nipples, Line Pipe Swages, Swage Nipple Suppliers in India, Threaded Swage Nipples, Swage Nipple Exporters, Concentric Swage Nipple, Eccentric Swage Nipples, Swaged Nipple Suppliers, Stainless Steel Socket Weld Swage Nipple, A105N Swage Nipples, A182 Swage Nipples, Stainless Steel 304 Swage Nipples, Stainless Steel 316 Swage Nipples, Inconel Swage Nipples, Monel Swage Nipples, Hastelloy Swage Nipples, Swage Nipples with Threaded Ends, Swage Nipples with Plain Ends, Swage Nipples with Bevel Ends, Hot Dip Galvanized Swages, electro-galvanized coating, blackodising finish, sand blasting, or pickled finish in case of stainless steel swage nipples
