Forged Socket Weld Full Coupling Manufacturers & suppliers in India
Stainless Steel Forged Socket Weld Full Coupling Suppliers, ASME B16.5/ B16.9/ B16.11/ B16.36/ B16.25/ B16.49 Stainless Fittings, ASTM A182 Forged Socket Weld Full Coupling, threaded pipe fittings & socket weld pipe fittings manufacturers

High pressure pipe fittings & Forged Socket Weld Full Coupling, Forged Socket Weld Full Coupling Stockholders

Hathway / Dynamic manufacturing unit’s original photograph


Hathway / Dynamic was the first company in India who was awarded the order to Supply Stainless Steel Forged Socket Weld Full Coupling & Forged Socket Weld Full Coupling by Indian Oil Corporation for their refinery at Mundra. In 2008 Jordan Petroleum Refinery Company Limited selected Hathway Metals to supply stainless steel butt weld fittings & alloy steel Forged Socket Weld Full Coupling to Amman, Jordan out of 6 top manufacturers of Forged Socket Weld Full Coupling in INDIA based on pressure rating of our Forged Socket Weld Full Coupling.

Hathway / Dynamic is an approved manufacturer of high nickel based special alloy buttweld pipe fittings and Forged Socket Weld Full Coupling, ss Forged Socket Weld Full Coupling, stainless pipe fittings, seam welded 100% radiography tested pipe fittings to requirements of BVIS, IBR, BARC, DNV, BHEL & we are ISO 9001:2008, 14001:2004, OHSAS 18001:2007 certified company.

Contents

  • Forged Socket Weld Full Coupling Material, Size & Specification
  • Forged Socket Weld Full Coupling Dimensions
  • Forged Socket Weld Full Coupling Project Reference List
  • Dealer & Distributor of World’s Top 10 Manufacturers of Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling Latest Price »
    1/8? Socket Weld Elbow 304/304L, 3000 LB
    FOB Price: $10.57

Forged Socket Weld Full Coupling Material, Size & Specification

Specification
  • Forged stainless steel fittings: ASTM A182, ASTM SA182 S/W &SCRD (NPT / BSP / BSPT)
  • Carbon steel Forged Socket Weld Full Coupling: A-105, S/W &SCRD (NPT / BSP / BSPT)
  • Mild Steel Forged Fitting: IS BS ASTM ANSI B16.11 S/W & SCRD
  • Nickel Alloy Forged Socket Weld Full Coupling: ASTM B366 S/W & SCRD
  • Non Ferrous metal Forged Socket Weld Full Coupling: IS BS ASTM S/W & SCRD
Forged Socket Weld Full Coupling Dimension ANSI B 16.11
Forged Socket Weld Full Coupling Size 1/4" NB TO 4" NB
Forged Socket Weld Full Coupling Class 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS
Forged Socket Weld Full Coupling Range Coupling, Plug, Socket, Bushing, Elbow, Tee, Nipple, Union,Threading Outlet, Welding Outlet, Sockt Weld Outlet.
Stainless Steel Forged Socket Weld Full Coupling ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Duplex Steel Forged Socket Weld Full Coupling ASTM A 182 –F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel Forged Socket Weld Full Coupling ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2
Alloy Steel Forged Socket Weld Full Coupling ASTM / ASME A 182 GR F5, F 9, F 11, F 12, F 22, F 91.
Copper Alloys Forged Socket Weld Full Coupling ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500
ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30)
Nickel Alloy Forged Socket Weld Full Coupling ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Low temperature steel: A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8
High performance steel: A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70

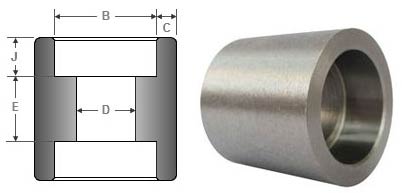

Forged Socket Weld Full Coupling Dimensions

Socket Weld Full couplings – NPS 1/2 to 4 – 3000 LBS – ASME B16.11

 NPS   Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Center to bottom
of socket
B J D C A
1/2 21.95
21.70		 10 16.6
15		 4.65
4.10		 15.5
3/4 27.30
27.05		 13 21.7
20.2		 4.90
4.25		 19.5
1 34.05
33.80		 13 27.4
25.9		 5.70
5.00		 22
1¼ 42.80
42.55		 13 35.8
34.3		 6.05
5.30		 27
1½ 48.90
48.65		 13 41.7
40.1		 6.35
5.55		 32
2 61.35
61.10		 16 53.5
51.7		 6.95
6.05		 38
2½ 74.20
73.80		 16 64.2
61.2		 8.75
7.65		 41.5
3 90.15
89.80		 16 79.5
46.4		 9.50
8.30		 57.5
4 115.80
115.45		 19 103.8
100.7		 10.70
9.35		 66.5

Socket Weld Full couplings – NPS 1/2 to 2 – 6000 LBS – ASME B16.11

NPS   Socket
Bore		 Depth
Socket		 Bore
diameter		 Socket
wall thickness		 Center to bottom
of socket
B J D C A
1/2 21.95
21.70		 10 12.5
11		 5.95
5.20		 19.5
3/4 27.30
27.05		 13 16.3
14.8		 6.95
6.05		 22.5
1 34.05
33.80		 13 21.5
19.9		 7.90
6.95		 27
1¼ 42.80
42.55		 13 30.2
28.7		 7.90
6.95		 32
1½ 48.90
48.65		 13 34.7
33.2		 8.90
7.80		 38
2 61.35
61.10		 16 43.6
42.1		 10.90
9.50		 41

General notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • Socket Bore (B) – Maximum and minimum dimensions.
  • Bore Diameter (D) – Maximum and minimum dimensions.
  • Socket wall thickness – (C) – Average of Socket wall thickness.
  • Dimensional tolerances center to bottom of socket – (A)
    NPS 1/2 and NPS 3/4 = +/- 1.5 mm
    NPS 1 to NPS 2 = +/- 2 mm
    NPS 2½ to NPS 4 = +/- 2.5 mm

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps		 ½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
½ – 4 ½ – 2 ½ – 2
Pipe Size
by Wall Thickness		 SCH 80 & XS SCH 160 XXS

Forged Socket Weld Full Coupling Project Reference List
(Updated projects list from 2015 onwards, please contact our Sales Office)

Hathway / Dynamic supplied Forged Pipe Fittings in more then 37 countries in last 10 years

PROJECT NAME / CUSTOMER HATHWAY SUPPLIED GRADES LOCATION YEAR
INDORAMA Forged Socket Weld Full Coupling AND BRANCH OUTLETS BW – SW – THRD A105 – A350 LF2 – A106B- A333 GR6 – A234 WPB – A420 WPL6 – A182 F304L THE NETHERLANDS 2015
GAS AND CONDENSATE EXPORT SYSTEM Forged Socket Weld Full Coupling AND BRANCH OUTLETS BW – SW A182 F316L – A182F44
A182 F44 , A312S31254, A182 F316L,
A105.N, A105 HDG, A350 LF2, A106
Gr.B, A106 Gr.B HDG , A333 Gr.6, A234 WPB		 KUWAIT 2015
GAS DEVELOPMENT PROJECT Forged Socket Weld Full Coupling, BRANCH OUTLETS INCOLOY 825 INDONESIA 2015
QUALITY STAMP TRADING -SAUDI ARAMCO Forged Socket Weld Full Coupling , BRANCH OUTLETS SW A105, A105 GALV, A350 LF2, A182F304L,
A182F316L, A403 WP316L, A182F321,
A182F44, A182F5, CU45/10 UNS C70610		 SAUDI ARABIA 2014-2015
REFINERY OFF GAS PROJECT Forged Socket Weld Full Coupling, BRANCH OUTLETS BW-THRD, NIP OUTLETS A105, A105 HDG A350 LF2, A182 F304/
304L, A182F316/316L, A182F11,
A105N, A106B, A234WPB, A333		 BELGIUM 2014-2015
MA’ADEN WA’AD AL SHAMAL PHOSPHATE Forged Socket Weld Full Coupling AND BRANCH OUTLETS SW-BW A350LF2, F304L, F316L, F454L,
A182F60, ALLOY20
A105N, A106B, A234WPB,		 SAUDI ARABIA 2014-2015
NORTH WEST REDWATER Forged Socket Weld Full Coupling SW & NPT A350LF2,A420WPL6,
A182F304L-F316L,WP304L,HAST,C276		 CANADA 2014-2015
CANADA NWR PROJECT Forged Socket Weld Full Coupling , BRANCH OUTLETS SW & NPT F304L/316L/317L/347H/321H
F11/F22/ UNS08825		 CANADA 2014-2015
DENIZ 2 PROJECT Forged Socket Weld Full Coupling SW & NPT A 105, A105 GALVA, A350LF2, A333 Gr6,
A234WPB-A420WPL6, F304L, WP304L		 AZERBAIJAN 2014
ADMA OPCO ABU DHABI Forged Socket Weld Full Coupling, BRANCH OUTLETS BW-THRD, LATERAL, OUTLETS A694 F52, A182F321, A182F316, A105.N,
A312TP316L, A312 TP321, A182 F53
SUPER DUPLEX		 UAE 2014
SAUDI ARAMCO HOLLAND Forged Socket Weld Full Coupling CuNi 4510 SAUDI ARABIA 2014
MISSAN OIL Comp.PETROCHINA IRAQ API COUPLINGS L80 IRAQ 2014
SAUDI ARAMCO Forged Socket Weld Full Coupling, BRANCH OUTLETS BW-SW-THRD MONEL 400, A182 F5, A182F316L,
A182F304L, A105		 SAUDI ARABIA 2014
OIL AND GAS INC Forged Socket Weld Full Coupling AND BRANCH OUTLETS BW UNS NO 6625 BRAZIL 2014
SHIDDIRGANG PROJECT Forged Socket Weld Full Coupling, BRANCH OUTLETS BW-SW-THRD   BANGLADESH 2014
SAUDI ARABIAN MINING COMPANY Forged Socket Weld Full Coupling AND BRANCH OUTLETS SW – BW A105, A105 GALV, A350LF2A182F304L,
A182F316L		 SAUDI ARABIA 2014
GAS TURBINE POWER PLANT PROJECT Forged Socket Weld Full Coupling AND BRANCH OUTLETS SW A105, A182F316L IRAQ 2014
GRUPO CUNADO Forged Socket Weld Full Coupling A105,A182F304L, A182F316L,F321, TURKEY 2013-2014
ALSTOM Forged Socket Weld Full Coupling AND BRANCH OUTLETS A105, A182F304L, A182F316L

MOROCCO, SOUTH AFRICA

 2010

Types of Forged Socket Weld Full Coupling

  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Half Coupling
  • Forged Socket Weld Pipe Cap
  • Forged Socket Weld Union
  • Forged Socket Weld Reducer Insert
  • Forged Socket Weld Boss
  • Forged Socket Weld Branch Outlet
  • Forged Socket Weld Full Coupling Outlet
  • Forged Socket Weld Boss
  • Forged Socket Weld Lateral Outlet
  • Forged Butt Weld Branch Outlet
  • Forged Socket Weld Full Coupling
  • Forged Socket Weld Pipe Nipples
  • Forged Socket Weld Pipe Outlet Fittings
  • Forged Socket Weld Swage Nipples | Pipe Swage

Forged Socket Weld Full Coupling Material of construction

Stainless Steel Forged Socket Weld Full Coupling

Alloy Steel Forged Socket Weld Full Coupling

Carbon Steel Forged Socket Weld Full Coupling

Duplex Steel Forged Socket Weld Full Coupling

Hathway’s Quality is at par and offer much competitive prices than below mentioned brands

Raccortubi S.p.A. Forged Socket Weld Full Coupling, Italy Erne Fittings Forged Socket Weld Full Coupling, Austria Melesi Forged Socket Weld Full Coupling, Italy Mega Forged Socket Weld Full Coupling, Italy Ulma Forged Socket Weld Full Coupling, Spain
TecnoForge Forged Socket Weld Full Coupling, Italy BENKAN Corporation Forged Socket Weld Full Coupling, Japan BKL- Thai Benkan Forged Socket Weld Full Coupling, Thailand Lame S.r.l. Forged Socket Weld Full Coupling, Italy Metal far Forged Socket Weld Full Coupling, Italy

(All Logo’s and Trade names mentioned/shown belongs to their respective owners)
