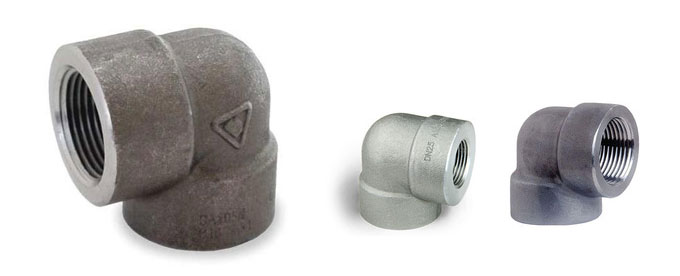

Forged 90 Deg Screwed-Threaded Elbow
Forged 90 Deg Screwed-Threaded Elbow Manufacturers & suppliers in India
Stainless Steel Forged 90 Deg Screwed-Threaded Elbow Suppliers, ASME B16.5/ B16.9/ B16.11/ B16.36/ B16.25/ B16.49 Stainless Fittings, ASTM A182 Forged 90 Deg Screwed-Threaded Elbow, threaded pipe fittings & socket weld pipe fittings manufacturers
High pressure pipe fittings & forged steel fittings, Forged 90 Deg Screwed-Threaded Elbow Stockholders
Welded / Seamless, 90° | 45°, Long Radius (LR) | Short Radius (SR) manufacturing in Our Work Shop
Hathway / Dynamic was the first company in India who was awarded the order to Supply Stainless Steel Forged Fittings & Forged 90 Deg Screwed-Threaded Elbow by Indian Oil Corporation for their refinery at Mundra. In 2008 Jordan Petroleum Refinery Company Limited selected Hathway Metals to supply stainless steel butt weld fittings & alloy steel forged fittings to Amman, Jordan out of 6 top manufacturers of forged fittings in INDIA based on pressure rating of our forged fittings.
Hathway / Dynamic is an approved manufacturer of high nickel based special alloy buttweld pipe fittings and Forged 90 Deg Screwed-Threaded Elbow, ss socket weld fittings, stainless pipe fittings, seam welded 100% radiography tested pipe fittings to requirements of BVIS, IBR, BARC, DNV, BHEL & we are ISO 9001:2008, 14001:2004, OHSAS 18001:2007 certified company.
Type of Butt weld Stub Ends | Lap Joint :
- Forged 90 Deg Screwed-Threaded Elbow Material, Size & Specification
- Forged 90 Deg Screwed-Threaded Elbow Dimensions
- Forged 90 Deg Screwed-Threaded Elbow Project Reference List
- Dealer & Distributor of World’s Top 10 Manufacturers of Forged 90 Deg Screwed-Threaded Elbow
- Forged 90 Deg Screwed-Threaded Elbow Latest Price »
- 1/8? Socket Weld Elbow 304/304L, 3000 LB
- FOB Price: $10.57
Forged 90 Deg Screwed-Threaded Elbow Material, Size & Specification
| Specification |
|
|---|---|
| Forged 90 Deg Screwed-Threaded Elbow Dimension | ANSI B 16.11 |
| Forged 90 Deg Screwed-Threaded Elbow Size | 1/4″ NB TO 4″ NB |
| Forged 90 Deg Screwed-Threaded Elbow Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Forged steel fittings Range | Coupling, Plug, Socket, Bushing, Elbow, Tee, Nipple, Union,Threading Outlet, Welding Outlet, Sockt Weld Outlet. |
| Stainless Steel Forged 90 Deg Screwed-Threaded Elbow | ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Duplex Steel Forged 90 Deg Screwed-Threaded Elbow | ASTM A 182 –F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61 S 31803, S 32205, S 32550, S 32750, S 32760 |
| Carbon Steel Forged 90 Deg Screwed-Threaded Elbow | ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2 |
| Alloy Steel Forged 90 Deg Screwed-Threaded Elbow | ASTM / ASME A 182 GR F5, F 9, F 11, F 12, F 22, F 91. |
| Copper Alloys Forged 90 Deg Screwed-Threaded Elbow | ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500 ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30) |
| Nickel Alloy Forged 90 Deg Screwed-Threaded Elbow | ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276) |
| Low temperature steel: | A522 A707 Grade L 1-L 2-L 3-L 4-L 5-L 6-L 7-L 8 |
| High performance steel: | A694 F 42-F 46-F 48-F 50-F 52-F 56-F 60-F 65-F 70 |
Forged 90 Deg Screwed-Threaded Elbow Dimensions
| Class 2000 |
Nominal Pipe Size |
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 |
| A | – | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 3 | 3 3/8 | 4 3/16 | |
| B | – | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/16 | 4 5/16 | 5 3/4 | |
| Wt | – | 0.198 | 0.283 | 0.500 | 0.773 | 1.013 | 1.550 | 2.180 | 3.140 | 6.500 | 10.925 | 26.675 | |
| Class 3000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 7/8 | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 1/2 | |
| B | 29/32 | 1 1/16 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 6 | |
| Wt | 0.236 | 0.350 | 0.592 | 0.973 | 1.355 | 2.265 | 2.407 | 3.500 | 5.920 | 11.900 | 14.438 | 31.975 | |
| Class 6000 | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
| A | 31/32 | 1 1/8 | 1 5/16 | 1 1/2 | 1 3/4 | 2 | 2 3/8 | 2 1/2 | 3 1/4 | 3 3/4 | 4 3/16 | 4 1/2 | |
| B | 1 1/6 | 1 5/16 | 1 9/16 | 1 27/32 | 2 7/32 | 2 1/2 | 3 1/32 | 3 11/32 | 4 | 4 3/4 | 5 3/4 | 6 | |
| Wt | 0.250 | 0.625 | 1.023 | 1.625 | 2.625 | 3.500 | 6.750 | 7.500 | 13.438 | 20.875 | 39.050 | 38.000 | |
90° ELBOWS – THREADED – B16.11
Forged 90 Deg Screwed-Threaded Elbow Project Reference List
(Updated projects list from 2015 onwards, please contact our Sales Office)
Hathway / Dynamic supplied Forged Pipe Fittings in more then 37 countries in last 10 years
| PROJECT NAME / CUSTOMER | HATHWAY SUPPLIED | GRADES | LOCATION | YEAR |
|---|---|---|---|---|
| INDORAMA | Forged 90 Deg Screwed-Threaded Elbow AND BRANCH OUTLETS BW – SW – THRD | A105 – A350 LF2 – A106B- A333 GR6 – A234 WPB – A420 WPL6 – A182 F304L | THE NETHERLANDS | 2015 |
| GAS AND CONDENSATE EXPORT SYSTEM | Forged 90 Deg Screwed-Threaded Elbow AND BRANCH OUTLETS BW – SW | A182 F316L – A182F44 A182 F44 , A312S31254, A182 F316L, A105.N, A105 HDG, A350 LF2, A106 Gr.B, A106 Gr.B HDG , A333 Gr.6, A234 WPB |
KUWAIT | 2015 |
| GAS DEVELOPMENT PROJECT | Forged 90 Deg Screwed-Threaded Elbow, BRANCH OUTLETS | INCOLOY 825 | INDONESIA | 2015 |
| QUALITY STAMP TRADING -SAUDI ARAMCO | Forged 90 Deg Screwed-Threaded Elbow , BRANCH OUTLETS SW | A105, A105 GALV, A350 LF2, A182F304L, A182F316L, A403 WP316L, A182F321, A182F44, A182F5, CU90/10 UNS C70610 |
SAUDI ARABIA | 2014-2015 |
| REFINERY OFF GAS PROJECT | FORGED FITTINGS, BRANCH OUTLETS BW-THRD, NIP OUTLETS | A105, A105 HDG A350 LF2, A182 F304/ 304L, A182F316/316L, A182F11, A105N, A106B, A234WPB, A333 |
BELGIUM | 2014-2015 |
| MA’ADEN WA’AD AL SHAMAL PHOSPHATE | FORGED FITTINGS AND BRANCH OUTLETS SW-BW | A350LF2, F304L, F316L, F904L, A182F60, ALLOY20 A105N, A106B, A234WPB, |
SAUDI ARABIA | 2014-2015 |
| NORTH WEST REDWATER | FORGED FITTINGS SW & NPT | A350LF2,A420WPL6, A182F304L-F316L,WP304L,HAST,C276 |
CANADA | 2014-2015 |
| CANADA NWR PROJECT | FORGED FITTINGS , BRANCH OUTLETS SW & NPT | F304L/316L/317L/347H/321H F11/F22/ UNS08825 |
CANADA | 2014-2015 |
| DENIZ 2 PROJECT | FORGED FITTINGS SW & NPT | A 105, A105 GALVA, A350LF2, A333 Gr6, A234WPB-A420WPL6, F304L, WP304L |
AZERBAIJAN | 2014 |
| ADMA OPCO ABU DHABI | FORGED FITTINGS, BRANCH OUTLETS BW-THRD, LATERAL, OUTLETS | A694 F52, A182F321, A182F316, A105.N, A312TP316L, A312 TP321, A182 F53 SUPER DUPLEX |
UAE | 2014 |
| SAUDI ARAMCO HOLLAND | FORGED FITTINGS | CuNi 9010 | SAUDI ARABIA | 2014 |
| MISSAN OIL Comp.PETROCHINA IRAQ | API COUPLINGS | L80 | IRAQ | 2014 |
| SAUDI ARAMCO | Forged 90 Deg Screwed-Threaded Elbow, BRANCH OUTLETS BW-SW-THRD | MONEL 400, A182 F5, A182F316L, A182F304L, A105 |
SAUDI ARABIA | 2014 |
| OIL AND GAS INC | Forged 90 Deg Screwed-Threaded Elbow AND BRANCH OUTLETS BW | UNS NO 6625 | BRAZIL | 2014 |
| SHIDDIRGANG PROJECT | Forged 90 Deg Screwed-Threaded Elbow, BRANCH OUTLETS BW-SW-THRD | BANGLADESH | 2014 | |
| SAUDI ARABIAN MINING COMPANY | FORGED FITTINGS AND BRANCH OUTLETS SW – BW | A105, A105 GALV, A350LF2A182F304L, A182F316L |
SAUDI ARABIA | 2014 |
| GAS TURBINE POWER PLANT PROJECT | FORGED FITTINGS AND BRANCH OUTLETS SW | A105, A182F316L | IRAQ | 2014 |
| GRUPO CUNADO | FORGED STEEL FITTINGS | A105,A182F304L, A182F316L,F321, | TURKEY | 2013-2014 |
| ALSTOM | FORGED STEEL FITTINGS AND BRANCH OUTLETS | A105, A182F304L, A182F316L |
MOROCCO, SOUTH AFRICA |
2010 |
Buttweld Pipe Fittings, Carbon Steel Elbows, Stainless Steel Elbows, Alloy Steel Elbows, Duplex Steel Elbows
Stainless Steel Forged 90 Deg Screwed-Threaded Elbow
Alloy Steel Forged 90 Deg Screwed-Threaded Elbow
Carbon Steel Forged 90 Deg Screwed-Threaded Elbow
Duplex Steel Forged 90 Deg Screwed-Threaded Elbow
Equivalent Quality & Price with below Manufacturers of Forged 45 Deg Screwed-Threaded Elbow
 |
 |
 |
 |
 |
| Raccortubi S.p.A. Forged Fittings, Italy | Erne Fittings Forged Fittings, Austria | Melesi Forged Fittings, Italy | Mega Forged Fittings, Italy | Ulma Forged Fittings, Spain |
 |
 |
 |
 |
 |
| TecnoForge Forged Fittings, Italy | BENKAN Corporation Forged Fittings, Japan | BKL- Thai Benkan Forged Fittings, Thailand | Lame S.r.l. Forged Fittings, Italy | Metal far Forged Fittings, Italy |
(All Logo’s and Trade names mentioned/shown belongs to their respective owners)
Do you need your Pipe end caps/ Plugs shipped to you internationally? Not only do we ship all of our fittings & flanges globally, we will consolidate the order for you and ship it to the closest port near you. We have gained several Orders of Pipe end caps/ Plugs from countries like US, Canada, Chile, Brazil, UK, Italy, Belgium, France, Portugal, South Africa, Nigeria, United Arab Emirates (UAE), Bahrain, Saudi Arabia, Qatar, Kuwait, Jordan, Malaysia, Thailand, Singapore, Indonesia, Sudan, Kazakhstan, Australia, Israel, Kenya, Russia, Tunisia, Vietnam, Colombia, Sri Lanka, etc.
