PIPE END CAP / PLUGS
Pipe end caps – plugs, round, oval manufacturer, exporter & suppliers in India. Yes we sell ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43 carbon, alloy, stainless steel pipe caps- Pipe Fittings
Manufacturers, dealer, distributor, stockist & suppliers of Pipe end caps / Plugs
ASME/ANSI B16.9 Pipe end caps/ Plugs manufacturer
- ASME/ANSI B16.9 Pipe end caps / Plugs Dimensions
- ASME/ANSI B16.9 Pipe end caps / Plugs Tolerances
- ASME/ANSI B16.9 Pipe end caps / Plugs Chemical Analysis
- ASME/ANSI B16.9 Pipe end caps / Plugs Tensile Requirements
- ASME/ANSI B16.9 Pipe end caps / Plugs Testing
- ASME/ANSI B16.9 Pipe end caps / Plugs Pressure Ratings
- Dimensions, Wall Thickness and Weights of ANSI/ASME Buttweld Fittings to ASTM A403 / A815 ASME B16.9
- Dimensions, Wall Thickness and Weights of Buttweld Fittings to ASME B16.9, ASME B16.28 and MSS SP75
- Factory-Made Wrought ASME/ANSI B16.9 Pipe end caps / Plugs
- Pipe End Cap Project Reference List
- Dealer & Distributor of World’s Top 10 Manufacturers of Butt weld fittings
- Butt weld fittings Latest Price in India »
- 1/2″ 45 Degree LR Butt Weld Elbow Sch 40 304/304L
- FOB Price: $8.40
- Click here for complete Butt weld fittings Price List
- ASME/ANSI B16.9 Pipe end caps/ Plugs Price in India » Please visit our Shop to buy Pipe Fittings Online, price available material/ size wise in our shop
Hathway / Dynamic is an approved manufacturer of Pipe end caps/ Plugs to requirements of BVIS, IBR, BARC, DNV, BHEL & we are ISO 9001:2008, 14001:2004, OHSAS 18001:2007 certified company.
Steel Pipe end caps / Plugs butt-weld pipe fitting used for closing the end of a pipe. This is a very thick and strong stainless butt cap & this fitting has a female butt-weld, beveled opening for welding to male connections with a smooth bore. Made of stainless steel 304/304L, the lower carbon content of this pipe fitting minimizes harmful carbide precipitation during welding, ensuring corrosion resistance. It meets both 304 steel strength standards and 304L extra-low carbon standards for quality assurance. Pipe end caps are components used for connecting, terminating, controlling flow, and changing the direction of piping in many different industries. When purchasing Pipe end caps, consider the application, as this will affect material type, shape, size and required durability. Steel Dome Pipe Cap are available threaded or unthreaded, in many shapes, styles, sizes, and schedules (pipe wall thickness).
Hathway / Dynamic have been manufacturing Butt-weld fittings for over forty years, establishing a global reputation for excellence and providing an unsurpassed level of manufacturing expertise, quality and service to our customers. Pipe end caps/ Plugs, are manufactured in Mandrel method & have a weld preparation to ASME B16.25 for the Oil, Gas, Nuclear, Petro-Chemical and Process Industries. Pipe end caps/ Plugs other schedule/ wall thickness are available from stock or in short delivery time.
Hathway / Dynamic specializes in manufacturing manufactured using superior grade of steel like Carbon Steel, Alloy Steel, Stainless Steel 201/202, 304/304L, 310S, 316/316L, 317L, 321/321H, 347/347H, 904L, A234 WPB, A420 WPL6, A234 WP11/WP5, Inconel, Monel, Hastelloy, cupro nickel, nickel alloys, Duplex, A403 WP304L/316L – as per ASME B16.9, ASME B16.28. These Butt weld fittings have special quality finishing and duress for long life, high pressure and zero defects.
Type of Butt weld Pipe end caps / Plugs:
- Seamless Butt Welding Fittings / Pipe end caps / Plugs to ASTM A403WP-S 304/304L or 316/316L, UNS S31803 fittings, ANSI B16.9, annealed and quenched, bevelled ends to ANSI B16.25, hardness to NACE MR0175-latest edition, IC to ASTM A262E and PMI tested, certificate to EN 10204/3.1B.
- Welded Butt Welding Fittings / Pipe end caps / Plugs to ASTM A403WP-W304/304L or 316/316L, ANSI B16.9 cold formed, annealed and quenched, bevelled ends to ANSI B16.25, hardness to NACE MR0175-latest edition, IC to ASTM A262E and PMI tested, certificate to EN 10204/3.1B
- All seamless fittings are from ISO and PED approved mills
Do you need your Pipe end caps / Plugs shipped to you internationally? Not only do we ship all of our fittings & flanges globally, we will consolidate the order for you and ship it to the closest port near you. We have gained several Orders of Pipe end caps/ Plugs from countries like US, Canada, Chile, Brazil, UK, Italy, Belgium, France, Portugal, South Africa, Nigeria, United Arab Emirates (UAE), Bahrain, Saudi Arabia, Qatar, Kuwait, Jordan, Malaysia, Thailand, Singapore, Indonesia, Sudan, Kazakhstan, Australia, Israel, Kenya, Russia, Tunisia, Vietnam, Colombia, Sri Lanka, etc.
Should you like to send you next enquiry for Pipe end caps/ Plugs to Dynamic Forge & Fittings (I) P. Limited.
Pipe fitting surplus stock at Dynamic Forge & Fittings
- Pipe Fittings
- Butt Weld Fittings
- Forged Fittings
- Socket Weld Fittings
- Threaded Fittings
- Flange

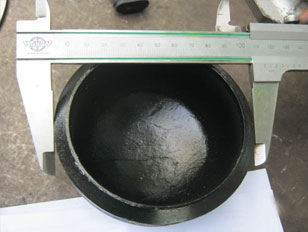

Pipe end caps / Plugs
stainless steel end cap, carbon steel pipe cap and alloy steel dome pipe cap
Stainless Steel Pipe end caps / Plugs
Carbon Steel Pipe end caps / Plugs
Alloy Steel Pipe end caps / Plugs
Pipe end caps / Plugs & Pipe Fittings trade exhibition in Dubai- UAE
Pipe end caps / Plugs Production Range
Stainless steel pipe cap, carbon steel pipe cap and special grade pipe cap are widely supplied by us to many industries such as power generation, petrochemical, shipbuilding, paper manufacturing, chemical, pharmaceutical, and fabrication. Pipe cap also known as plugs.
Buttweld Pipe End Cap Production Range –PIPE END CAPS – ROUND, OVAL
Outside Diameter: Pipe End Cap ( 1/2″ ?48″)
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Copper, Cupro Nickel, Inconel, Monel, Hastelloy
Manufacturing Standards
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Stainless Steel Pipe end caps/ Plugs :ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel Pipe end caps/ Plugs :
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Pipe end caps/ Plugs :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Pipe end caps/ Plugs :
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )
Duplex & Super Duplex Pipe end caps/ Plugs :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Pipe end caps / Plugs Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report as per client specification.
Hathway / Dynamic offer its Products with Third Party Inspection also. The Inspection Agency can be nominated by clients or Dynamic Forge & Fittings can be arrange the TPI by World reputed Agencies like Bureau Veritas, DNV, LLOYDS, ICB and many other.
Packaging & shipping:

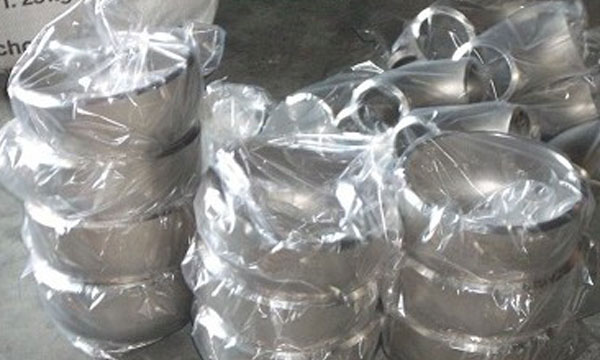

Pipe end caps / Plugs packing
Hathway / Dynamic emphasis on the packaging to ensure that there is no damage during transit the Pipe end caps / Plugs are packed in wooden corrugated boxes foiled in bubble wraps & are marked with Grade, Lot No, Size, Degree and Dynamic Forge & Fittings Brand Mark. You can also contact us for customized marking.
Hathway / Dynamic domestic network:
Mumbai, Ahmedabad, Chennai, Delhi, Bangalore
We also have our sales representative in Hyderabad, Kolkata, Surat, Pune, Nagpur, Indore, Thane, Bhopal, Visakhapatnam, Vadodra, Nashik, Faridabad, Rajkot, Aurangabad, Ranchi, Coimbatore, Raipur, Mysore, Bhubaneswar, Salem, Bhilai, Bhiwandi, Bikaner, Mangalore, Kochi (Cochin), Bhavnagar, Tirupur, Ankleshwar, Assam, Siliguri, Jamshedpur, Warangal, Nellore, Agartala and Thoothukudi, Rajkot, Tamil Nadu, Maharashtra, Jaipur, Jabalpur, Vishakapatnam, Sholapur, Davangere, New Delhi, Kakinada, Belagavi, Udaipur, Guwahati, Ludhiana
Hathway’s Quality is at par and offer much competitive prices than below mentioned brands
 |
 |
 |
 |
 |
Raccortubi S.p.A. Pipe End Cap, Italy |
Erne Fittings Pipe End Cap, Austria |
Melesi Pipe End Cap, Italy |
Mega Pipe End Cap, Italy |
Ulma Pipe End Cap, Spain |
 |
 |
 |
 |
 |
TecnoForge Pipe End Cap, Italy |
BENKAN Corporation Pipe End Cap, Japan |
BKL- Thai Benkan Pipe End Cap, Thailand |
Lame S.r.l. Pipe End Cap, Italy |
Metal far Pipe End Cap, Italy |
(All Logo’s and Trade names mentioned/shown belongs to their respective owners)
Pipe End Cap Project Reference List
(Updated projects list from 2015 onwards, please contact our Sales Office)
Hathway / Dynamic supplied Pipe End Cap in more then 37 countries in last 10 years
| PROJECT NAME / CUSTOMER | HATHWAY SUPPLIED | GRADES | LOCATION | YEAR |
|---|---|---|---|---|
| INDORAMA | BUTT WELD FITTINGS AND BRANCH OUTLETS BW – Pipe End Cap | A105 – A350 LF2 – A106B- A333 GR6 – A234 WPB – A420 WPL6 – A182 F304L | THE NETHERLANDS | 2015 |
| GAS AND CONDENSATE EXPORT SYSTEM | BUTT WELD FITTINGS AND BRANCH OUTLETS BW – Pipe End Cap | A182 F316L – A182F44 A182 F44 , A312S31254, A182 F316L, A105.N, A105 HDG, A350 LF2, A106 Gr.B, A106 Gr.B HDG , A333 Gr.6, A234 WPB |
KUWAIT | 2015 |
| GAS DEVELOPMENT PROJECT | BUTT WELD FITTINGS, BRANCH OUTLETS | INCOLOY 825 | INDONESIA | 2015 |
| QUALITY STAMP TRADING -SAUDI ARAMCO | BUTT WELD FITTINGS , BRANCH OUTLETS SW, Pipe End Cap | A105, A105 GALV, A350 LF2, A182F304L, A182F316L, A403 WP316L, A182F321, A182F44, A182F5, CU90/10 UNS C70610 |
SAUDI ARABIA | 2014-2015 |
| REFINERY OFF GAS PROJECT | BUTT WELD FITTINGS, BRANCH OUTLETS BW-THRD, NIP OUTLETS | A105, A105 HDG A350 LF2, A182 F304/ 304L, A182F316/316L, A182F11, A105N, A106B, A234WPB, A333 |
BELGIUM | 2014-2015 |
| MA’ADEN WA’AD AL SHAMAL PHOSPHATE | BUTT WELD FITTINGS AND BRANCH OUTLETS SW-BW | A350LF2, F304L, F316L, F904L, A182F60, ALLOY20 A105N, A106B, A234WPB, |
SAUDI ARABIA | 2014-2015 |
| NORTH WEST REDWATER | BUTT WELD FITTINGS SW & NPT | A350LF2,A420WPL6, A182F304L-F316L,WP304L,HAST,C276 |
CANADA | 2014-2015 |
| CANADA NWR PROJECT | BUTT WELD FITTINGS , BRANCH OUTLETS SW & NPT, Pipe End Cap | F304L/316L/317L/347H/321H F11/F22/ UNS08825 |
CANADA | 2014-2015 |
| DENIZ 2 PROJECT | BUTT WELD FITTINGS SW & NPT | A 105, A105 GALVA, A350LF2, A333 Gr6, A234WPB-A420WPL6, F304L, WP304L |
AZERBAIJAN | 2014 |
| ADMA OPCO ABU DHABI | BUTT WELD FITTINGS, BRANCH OUTLETS BW-THRD, LATERAL, OUTLETS | A694 F52, A182F321, A182F316, A105.N, A312TP316L, A312 TP321, A182 F53 SUPER DUPLEX |
UAE | 2014 |
| SAUDI ARAMCO HOLLAND | BUTT WELD FITTINGS | CuNi 9010 | SAUDI ARABIA | 2014 |
| MISSAN OIL Comp.PETROCHINA IRAQ | API COUPLINGS | L80 | IRAQ | 2014 |
| SAUDI ARAMCO | BUTT WELD FITTINGS, BRANCH OUTLETS BW-SW-THRD | MONEL 400, A182 F5, A182F316L, A182F304L, A105 |
SAUDI ARABIA | 2014 |
| OIL AND GAS INC | BUTT WELD FITTINGS AND BRANCH OUTLETS BW, Pipe End Cap | UNS NO 6625 | BRAZIL | 2014 |
| SHIDDIRGANG PROJECT | BUTT WELD FITTINGS, BRANCH OUTLETS BW-SW-THRD | BANGLADESH | 2014 | |
| SAUDI ARABIAN MINING COMPANY | BUTT WELD FITTINGS AND BRANCH OUTLETS SW – BW | A105, A105 GALV, A350LF2A182F304L, A182F316L |
SAUDI ARABIA | 2014 |
| GAS TURBINE POWER PLANT PROJECT | BUTT WELD FITTINGS AND BRANCH OUTLETS SW, Pipe End Cap | A105, A182F316L | IRAQ | 2014 |
| GRUPO CUNADO | FORGED STEEL FITTINGS | A105,A182F304L, A182F316L,F321, | TURKEY | 2013-2014 |
| ALSTOM | FORGED STEEL FITTINGS AND BRANCH OUTLETS | A105, A182F304L, A182F316L |
MOROCCO, SOUTH AFRICA |
2010 |

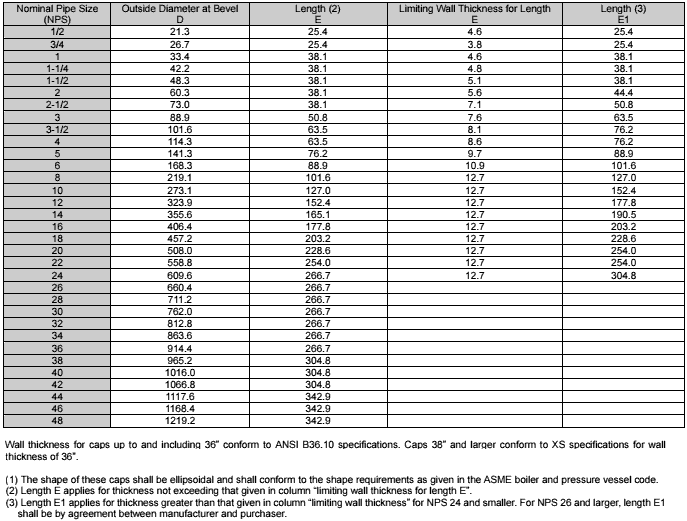

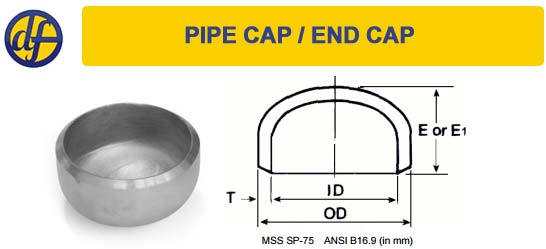

Pipe end caps / Plugs Dimensions:
PIPE CAPS – Ansi 16.9 dimensions
| CAPS – ANSI B 16.9 dimension | |||
|---|---|---|---|
| inches | mm | Height | |
| D | E | ||
| 1/2 | 15 | 21,34 | 25,40 |
| 3/4 | 20 | 26,67 | 31,75 |
| 25 | 33,40 | 38,10 | |
| 1 1/4 | 32 | 42,16 | 38,10 |
| 1 1/2 | 40 | 48,26 | 38,10 |
| 2 | 50 | 60,32 | 38,10 |
| 2 1/2 | 65 | 73,02 | 38,10 |
| 3 | 80 | 88,90 | 50,80 |
| 3 1/2 | 90 | 101,60 | 63,50 |
| 4 | 100 | 114,30 | 63,50 |
| 5 | 125 | 141,30 | 76,20 |
| 6 | 150 | 168,27 | 88,90 |
| 8 | 200 | 219,07 | 101,60 |
| 10 | 250 | 273,05 | 127,00 |
| 12 | 300 | 323,85 | 152,40 |
| 14 | 350 | 355,60 | 165,10 |
| 16 | 400 | 406,40 | 177,80 |
| 18 | 450 | 457,20 | 203,20 |
| 20 | 500 | 508,00 | 228,60 |
| 22 | 550 | 558,80 | 254,00 |
| 24 | 600 | 609,60 | 266,70 |
| 28 | 700 | 711,20 | 266,70 |
| Dimension in mm | |||
PIPE CAPS – Ansi 16.9 tolerances
| DIMENSIONAL TOLERANCES – CAPS | ||||
|---|---|---|---|---|
| For all fittings | Caps | |||
| Nominal Pipe Size (NPS) | Outside Ø at Bevel | Inside Ø at End | Wall Thickness t / t1 |
Overall Length E |
| 1/2 a 2 1/2 | 1 | 0,8 | Not | 4 |
| 3 a 3 1/2 | 1 | 1,6 | less | 4 |
| 4 | +2 -1 | 1,6 | than | 4 |
| 5 a 6 | +3 -1 | 1,6 | 87,50% | 7 |
| 8 | 2 | 1,6 | of nominal | 7 |
| 10 | +4 -3 | 3,2 | tickness | 7 |
| 12 a 18 | +4 -3 | 3,2 | 7 | |
| 20 a 24 | +6 -5 | 4,8 | 7 | |
| 26 a 30 | +7 -5 | 4,8 | 10 | |
| 32 a 48 | +7 -5 | 4,8 | 10 | |
CAPS – Weights
| WEIGHTS OF FITTINGS | ||||
|---|---|---|---|---|
| NPS inches |
CAPS | |||
| Sch. 5S |
Sch. 10S |
Sch. 40S |
Sch. 80S |
|
| 1/2 | 0.04 | 0.04 | 0.05 | 0.05 |
| 3/4 | 0.05 | 0.05 | 0.06 | 0.08 |
| 1 | 0.09 | 0.09 | 0.13 | 0.17 |
| 1 1/4 | 0.11 | 0.11 | 0.15 | 0.18 |
| 1 1/2 | 0.15 | 0.15 | 0.20 | 0.22 |
| 2 | 0.17 | 0.17 | 0.25 | 0.30 |
| 2 1/2 | 0.25 | 0.25 | 0.45 | 0.50 |
| 3 | 0.40 | 0.40 | 0.70 | 0.90 |
| 4 | 0.60 | 0.60 | 1.20 | 1.60 |
| 5 | 1.00 | 1.00 | 1.90 | 2.70 |
| 6 | 1.40 | 1.40 | 2.90 | 4.30 |
| 8 | 2.50 | 2.50 | 5.10 | 7.60 |
| 10 | 3.90 | 3.90 | 9.00 | 12.0 |
| 12 | 6.50 | 6.50 | 13.5 | 17.5 |
| 14 | 8.00 | 8.00 | 16.0 | 20.5 |
| 16 | 14.5 | 14.5 | 20.5 | 26.0 |
| 18 | 17.0 | 17.0 | 26.0 | 34.0 |
| 20 | 18.0 | 18.0 | 32.0 | 43.0 |
| 24 | 26.0 | 26.0 | 46.0 | 60.0 |
| Approximate weights in kg, density 8 kg/dm3 | ||||
