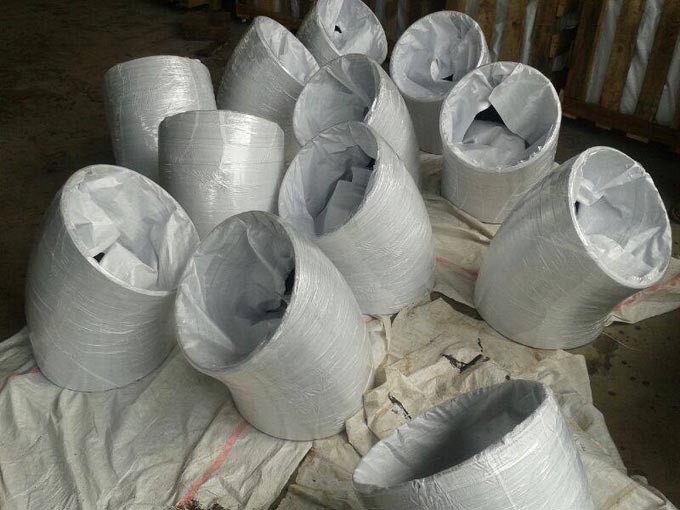

Hathway Metals manufacturing unit- original photograph of Butt Weld 45 Deg Long Radius Elbow
Hathway / Dynamic was the first company in India who was awarded the order to Supply Stainless Steel Forged Fittings & Butt Weld 45 Deg Long Radius Elbow by Indian Oil Corporation for their refinery at Mundra. In 2008 Jordan Petroleum Refinery Company Limited selected Hathway Metals to supply stainless steel butt weld fittings & alloy steel forged fittings to Amman, Jordan out of 6 top manufacturers of forged fittings in INDIA based on pressure rating of our forged fittings.
Hathway / Dynamic is an approved manufacturer of high nickel based special alloy buttweld pipe fittings and Butt Weld 45 Deg Long Radius Elbow, ss socket weld fittings, stainless pipe fittings, seam welded 100% radiography tested pipe fittings to requirements of BVIS, IBR, BARC, DNV, BHEL & we are ISO 9001:2008, 14001:2004, OHSAS 18001:2007 certified company.
Hathway Metals manufacturing unit’s original photograph
Contents:
- Butt Weld 45 Deg Long Radius Elbow Material, Size & Specification
- Butt Weld 45 Deg Long Radius Elbow Dimensions
- Butt Weld 45 Deg Long Radius Elbow Project Reference List
- Dealer & Distributor of World’s Top 10 Manufacturers of Butt weld fittings
- Butt weld fittings Latest Price in India »
- 1/2″ 45 Degree LR Butt Weld Elbow Sch 40 304/304L
- FOB Price: $8.40
- Click here for complete Butt weld fittings Price List
Butt Weld 45 Deg Long Radius Elbow Material, Size & Specification
| Type | Butt weld (BW) |
|---|---|
| Butt weld (BW) Standard | ASME / ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’ ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’ |
| Butt Weld 45 Deg Long Radius Elbow Dimension | ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313 |
| Butt Weld 45 Deg Long Radius Elbow Size | 1/2” TO 36”, (Seamless Butt weld up to 24”), (Welded Butt weld 8” TO 36”) |
| Butt Weld 45 Deg Long Radius Elbow Thickness | SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS, Custom Thickness. |
| Butt weld fittings Range | Elbow, Tee, Reducer, Stubend, Cross, Pipe Cap, Pipe Bend |
| Stainless Steel Butt Weld 45 Deg Long Radius Elbow | ASTM A403 WP316/316L ASTM A403 WP304/304L ASTM A182 F316L, 304L DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404 |
| Duplex Steel Butt Weld 45 Deg Long Radius Elbow | ASTM A815, ASME SA815 UNS No S31803, S32205 ASTM A815, ASME SA815 UNS No S32750, S32950 |
| Carbon Steel Butt Weld 45 Deg Long Radius Elbow | ASTM A234 Gr. WPB ASTM A420 Gr. WPL6 ASTM A105 ASTM A350 Gr. LF2 ASTM A234 Gr WPB ST37.2, ST35 ASTM / ASME A/SA 234 / 420 WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70 |
| Low Temperature Butt Weld 45 Deg Long Radius Elbow | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Butt Weld 45 Deg Long Radius Elbow | ASTM A 234 WP – P5, P9, P11, P12, P21, P22 & P91 ASTM A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91 |
| Copper Alloys Butt Weld 45 Deg Long Radius Elbow | ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500 ASTM / ASME SB 466 UNS NO. C 70600 (CU -NI- 90/10) , C 71500 (CU -NI- 70/30) Copper Nickel Cupro-Nickel 90/10 Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe. |
| Nickel Alloy Butt Weld 45 Deg Long Radius Elbow | ASTM / ASME SB 366, ASTM / ASME SB 564, Inconel 600 – UNS N06600, Inconel 601 – UNS N06601, Inconel 625 – UNS N06625, Incoloy 800 – UNS N08800, Incoloy 800H / HT – UNS N08810, Incoloy 825 – UNS N08825 |
Fittings
- A234 = This specification covers wrought carbon steel and alloy steel fittings of seamless and welded construction.
- A420 = Standard specification for piping fittings of wrought carbon steel and alloy steel for low-temperature service.
- A403 = Standard specification for wrought austenitic stainless steel piping fittings.
Butt Weld 45 Deg Long Radius Elbow Dimensions

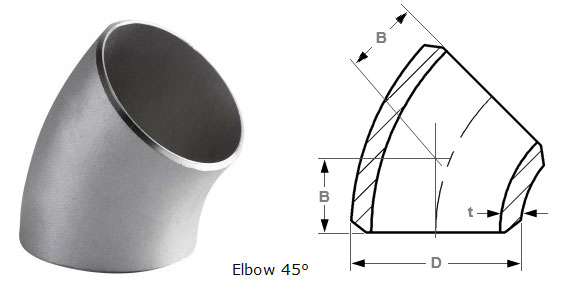

Dimensions Butt Weld Elbows 45 LR & 3D according to ASME B16.9
| NPS | O.D. D |
45 degrees Long Radius Center-to-End B |
45 degrees 3D Center-to-End B |
|---|---|---|---|
| 1/2 | 21.3 | 16 | … |
| 3/4 | 26.7 | 19 | 24 |
| 1 | 33.4 | 22 | 31 |
| 1¼ | 42.2 | 25 | 39 |
| 1½ | 48.3 | 29 | 47 |
| 2 | 60.3 | 35 | 63 |
| 2½ | 73 | 44 | 79 |
| 3 | 88.9 | 51 | 95 |
| 3½ | 101.6 | 57 | 111 |
| 4 | 114.3 | 64 | 127 |
| 5 | 141.3 | 79 | 157 |
| 6 | 168.3 | 95 | 189 |
| 8 | 219.1 | 127 | 252 |
| 10 | 273 | 159 | 316 |
| 12 | 323.8 | 190 | 378 |
| 14 | 355.6 | 222 | 441 |
| 16 | 406.4 | 254 | 505 |
| 18 | 457 | 286 | 568 |
| 20 | 508 | 318 | 632 |
| 22 | 559 | 343 | 694 |
| 24 | 610 | 381 | 757 |
| 26 | 660 | 406 | 821 |
| 28 | 711 | 438 | 883 |
| 30 | 762 | 470 | 964 |
| 32 | 813 | 502 | 1010 |
| 34 | 864 | 533 | 1073 |
| 36 | 914 | 565 | 1135 |
| 38 | 965 | 600 | 1200 |
| 40 | 1016 | 632 | 1264 |
| 42 | 1067 | 660 | 1326 |
| 44 | 1118 | 695 | 1389 |
| 46 | 1168 | 727 | 1453 |
| 48 | 1219 | 759 | 1516 |
| NPS | O.D. D |
45 degrees Long Radius Center-to-End B |
45 degrees 3D Center-to-End B |
Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.
Dimensional Tolerances of Butt Weld Elbows – 45° and 90° – LR and 3D – ASME B16.9 –
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
|---|---|---|---|---|---|---|---|---|
| Outside Diameter at Bevel (D) |
+ 1.6 – 0.8 |
1.6 | 1.6 | + 2.4 – 1.6 |
+ 4 – 3.2 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Inside Diameter at End | 0.8 | 1.6 | 1.6 | 1.6 | 3.2 | 4.8 | + 6.4 – 4.8 |
+ 6.4 – 4.8 |
| Center-to-End LR (A/B) | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 5 |
| Center-to-End 3D (A/B) | 3 | 3 | 3 | 3 | 3 | 3 | 6 | 6 |
| Wall Thickness (t) | Not less than 87.5% of Nominal Wall Thickness | |||||||
Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.
Note:
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 – NPS 24. Except with regard to the outside diameter at the bevel.
Special Fittings:
Fittings may be made to special dimensions, sizes, shapes, and tolerances by agreement between the manufacturer and the purchaser.
Butt Weld 45 Deg Long Radius Elbow Project Reference List
